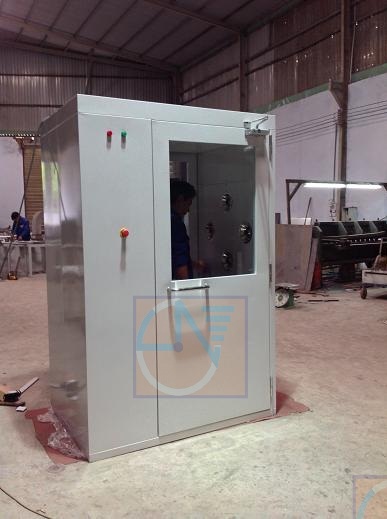

BUỒNG
THỔI KHÍ (AIR SHOWER)
Air
shower is a necessary passage for person or goods entering into the clean room
in order to minimize the amount of particulate contaminants. Personnel move
through the Air Shower white particulate contaminantsare is blew off by the clean high velocity.
OPTION
|
NOTES
|
Depend on customer request:
|
1- Microprocessor
sytem
|
- Change able dimension
|
2- Nozzles
|
- Material contruction of external
or internal
|
3- Light
|
- Higher velocity of air
|
4- Emergency
top switch
|
- Bolwing time vv,…
|
5- Lumination
|
|
6- Hepa
Filter
|
|
7- Blower
fan
|
|
8- Pre
Filter
|
|
9- Housing
|
|
10- Wworking
area
|
THÔNG
SỐ KỸ THUẬT/ TECHNICAL PARAMETER
Mã hàng/ Model
|
LN-AS140100B
|
LN-AS140200B
|
LN-AS140300B
|
Kích
thước ngoài/
Externel
dimension
(W*D*H)
mm
|
1400x1000x2150
|
1400x2000x2150
|
1400x3000x2150
|
Kích
thước trong/
Inside
dimension
(W*D*H)
mm
|
800x900x2000
|
800x1900x2000
|
800x2900x2000
|
Air velocity
|
20m/s
|
Number off Nozzles
|
16
|
32
|
48
|
Blowing time per cycle
|
Default
15 seconds
|
Persons per cycle
|
|
|
|
Personnel flow (pers/min)
|
|
|
|
Filtration
|
Hepa
filter: H13 > 99.99% at 0.3 µm. Coarse filter: G4 90-92%
|
Vật liệu chính/
Main body construction
|
Thép
sơn tĩnh điện/ Inox SUS 304
Steel
power coating/ 304 stainless steel
|
Fluorescent lamp
|
1x20W
|
1x40W
|
2x40W
|
Bảng điều khiển/ Control Panel
|
Bàn
phím mềm/ Soft keyboard
|
Nguồn điện/ Power supply
|
3P/380VAC/50Hz
|
Capacity
|
1200
|
2400
|
3600
|
